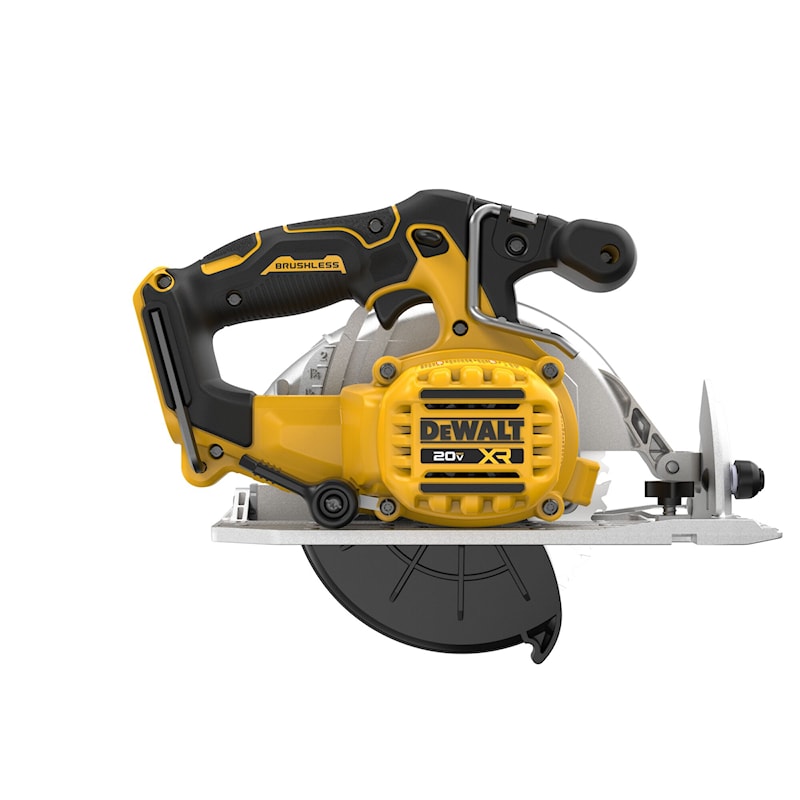

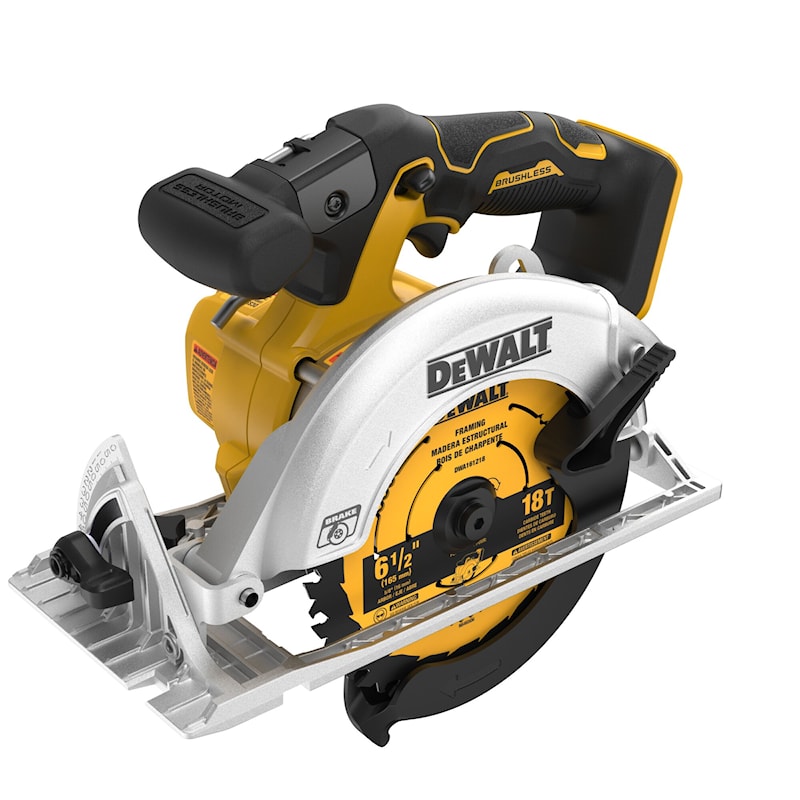

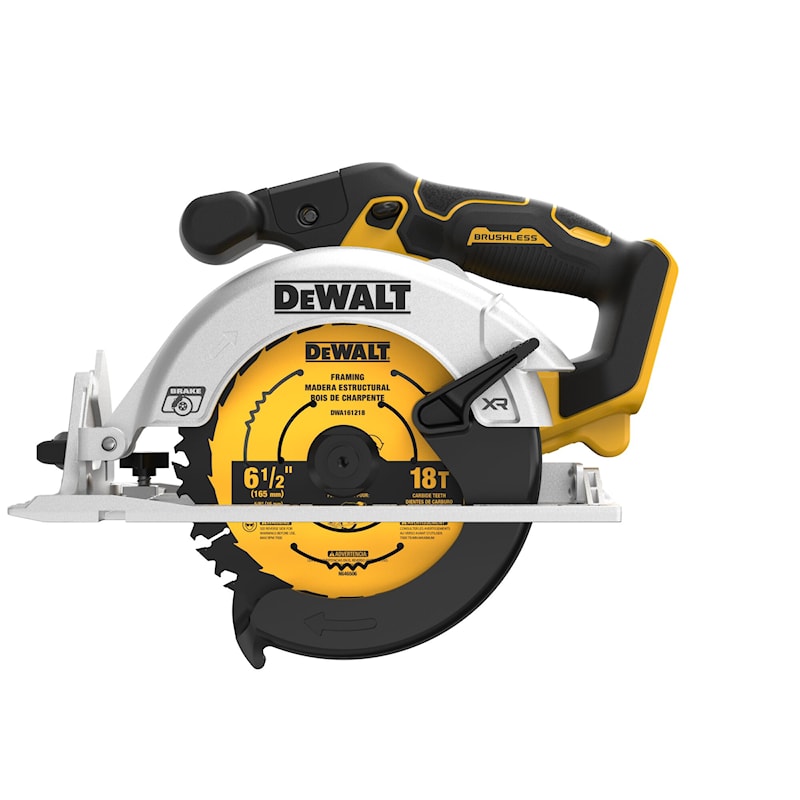

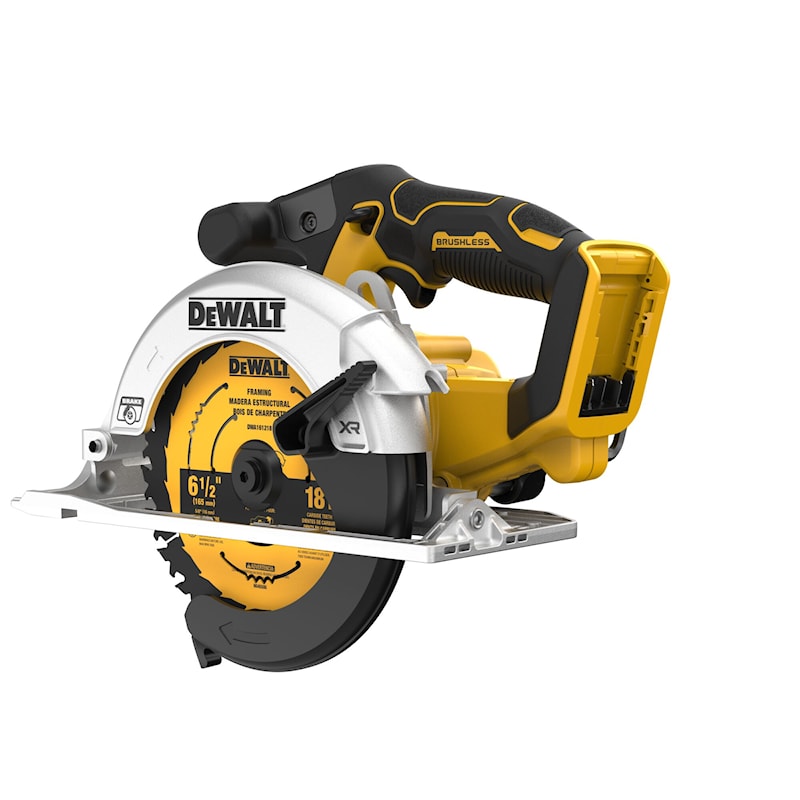

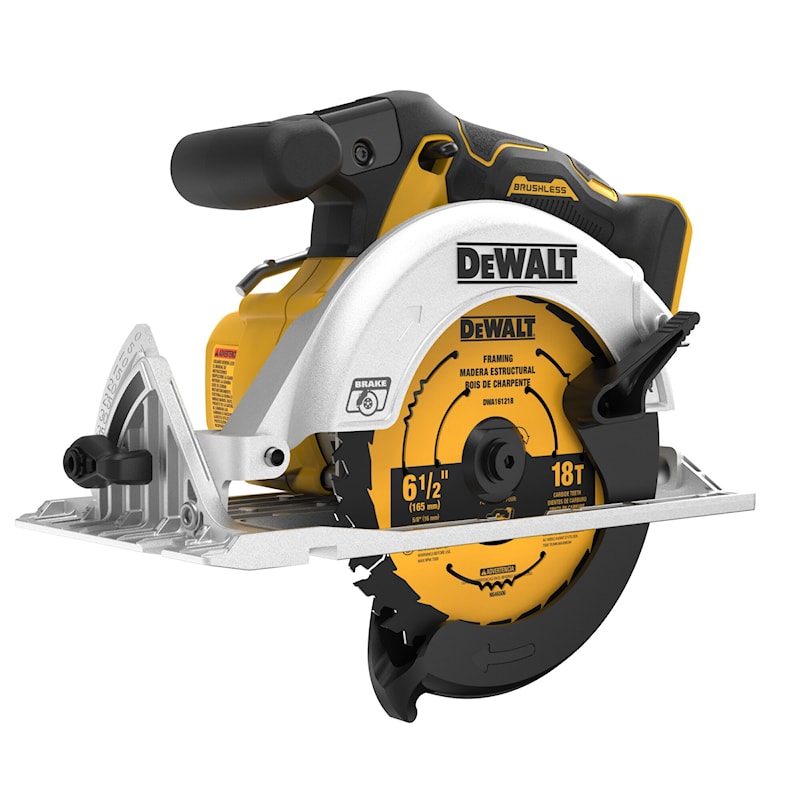

Take on a variety of cutting applications with the 20V MAX* XR® 6-1/2 in. Cordless Circular Saw. Equipped with a built-in rafter hook, bright LED, and optional dust chute, this saw is powered by a brushless motor that delivers 4,950 rpm. Built for versatility this saw delivers fast, accurate, and consistent cutting.
Features
- POWERFUL AND EFFICIENT brushless motor provides optimal cutting performance in a variety of materials
- HIGH MANEUVERABILITY with its lightweight and compact design

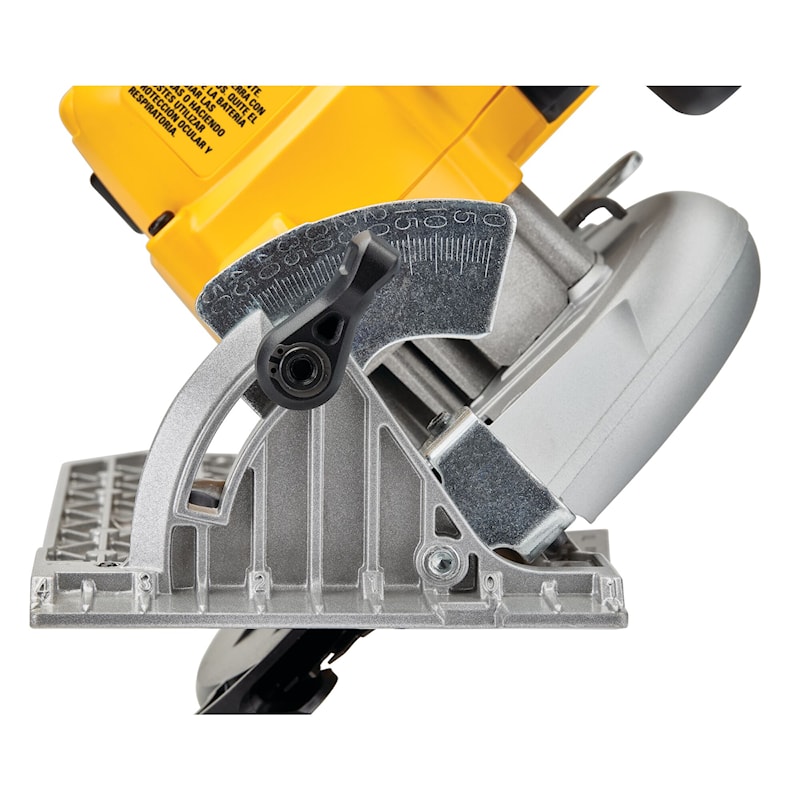

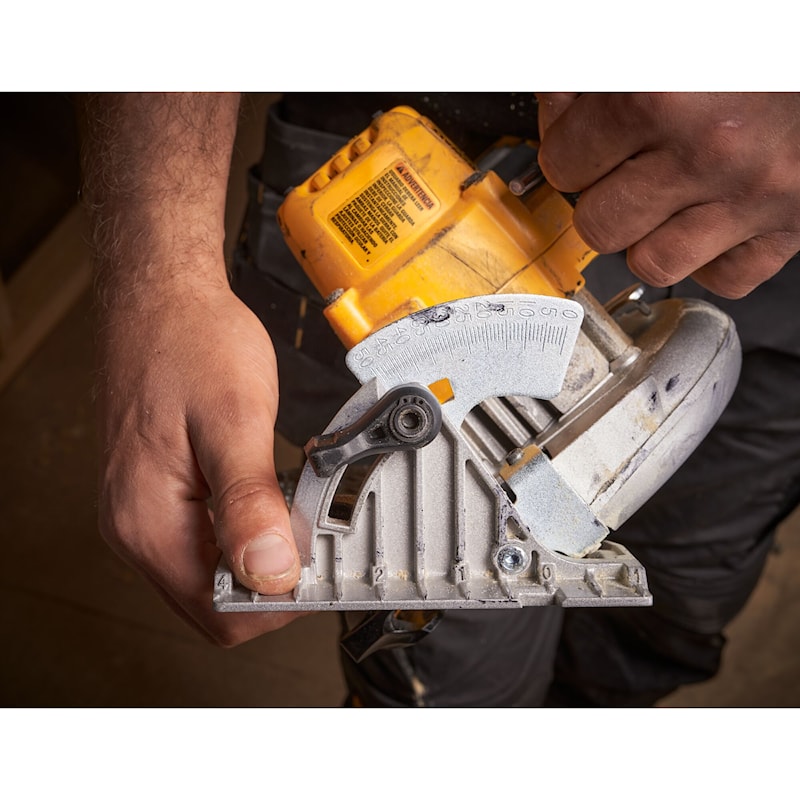

- QUICKLY ADJUST the bevel capacity from 0 - 50° with the tool-free bevel lever

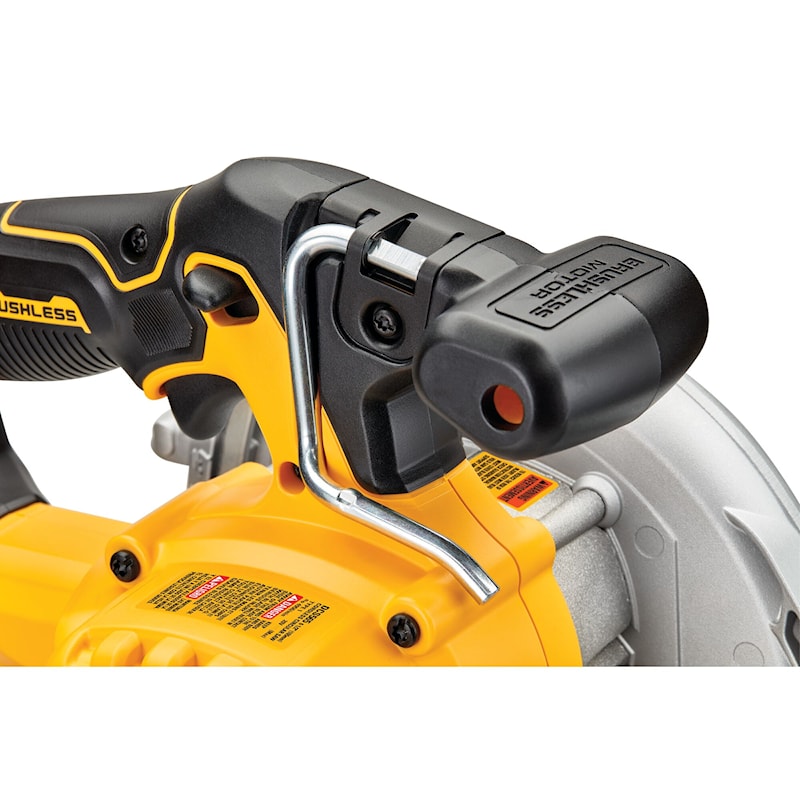

- CONVENIENT STORAGE on the jobsite with the built-in rafter hook
- ADDED SAFETY: Electric brake quickly stops the blade after the trigger is released

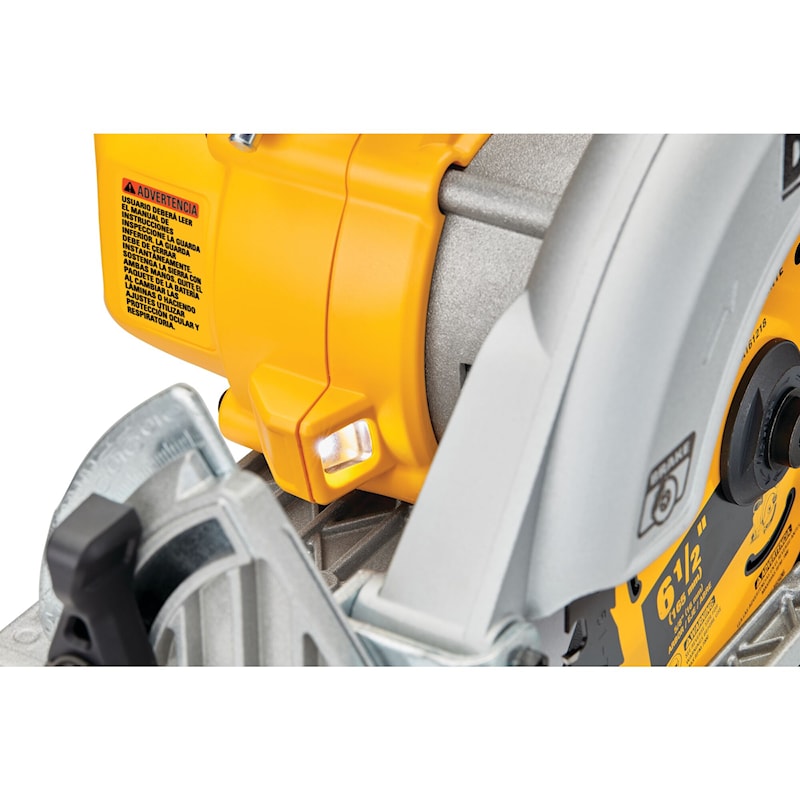

- INCREASED VISIBILITY and cut accuracy with bright LED

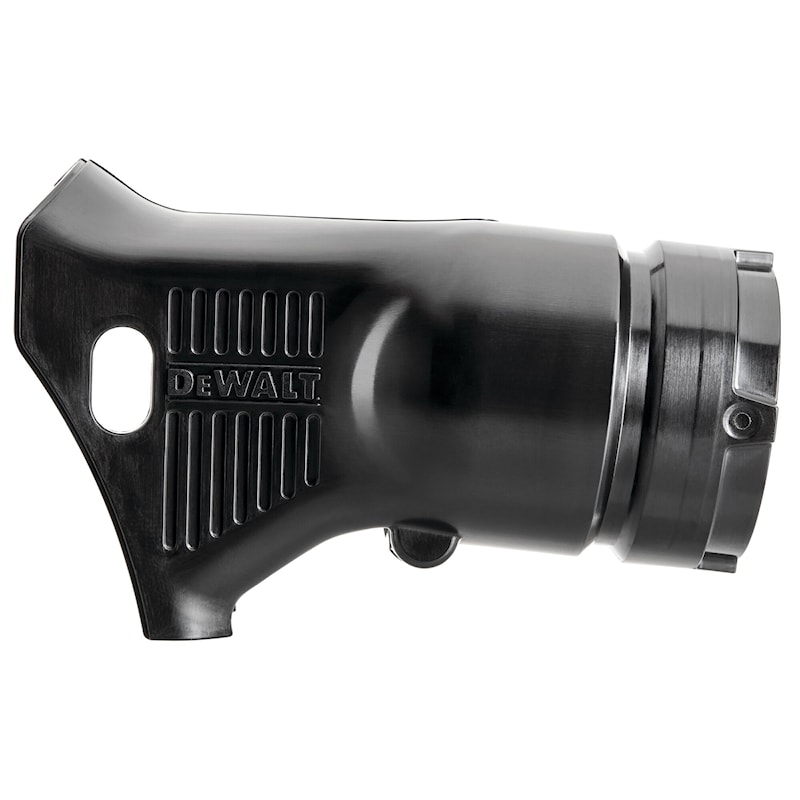

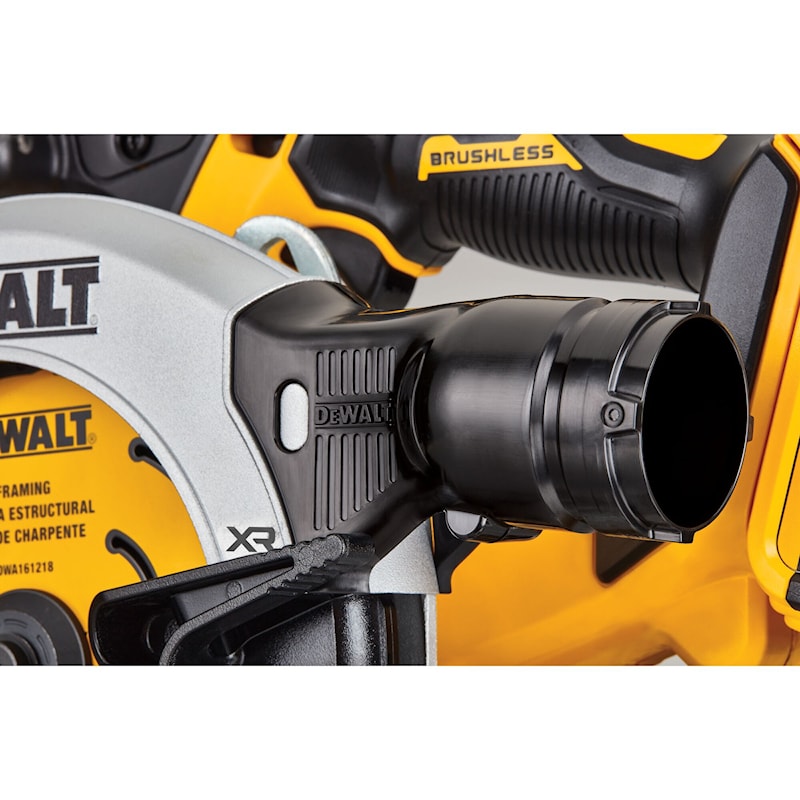

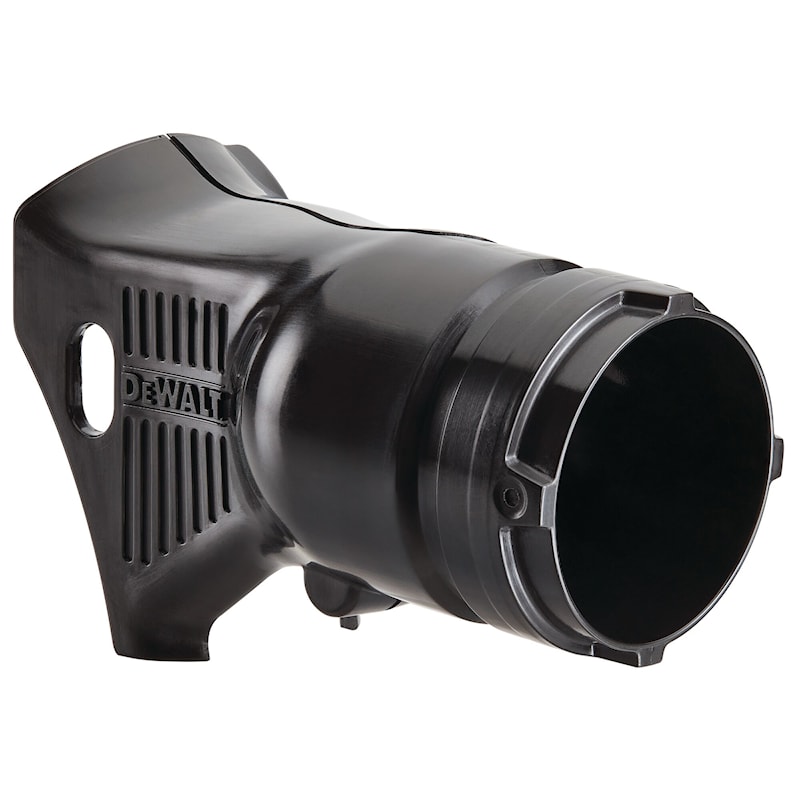

- MINIMIZE DUST WHILE CUTTING with the optional dust chute, compatible with the DEWALT® AirLock™ system or standard 35 mm dust extractor
- COMPATIBLE with all DEWALT® 20V MAX* and FLEXVOLT® Batteries
Includes
- (1) DCS565 20V MAX* XR® Brushless Cordless 6-1/2 in Circular Saw
- (1) DWA161218 Saw Blade
- (1) Blade Change Wrench
- (1) Optional Dust Chute
Specifications
- Arbor Size: 5/8 in
- Bevel Capacity: 50°
- Blade Diameter: 6-1/2 in
- Led light: Yes
- Max. Depth of Cut at 45º: 1-5/8 in
- Max. Depth of Cut at 90º: 2-1/8 in
- No Load Speed (RPM): 4950
- Product Weight: 6.3 lbs
